In the realm of smart projectors, the optical engine plays a pivotal role in defining both the visual experience and the overall cost. Serving as the core component responsible for image generation, the optical engine's technology determines key attributes such as brightness, contrast, color accuracy, and motion clarity. Understanding the differences between the primary optical engine types—DLP, LCD, and LCoS—is essential for consumers and professionals aiming to select a projector that aligns with their specific requirements and budget.
Understanding Optical Engines

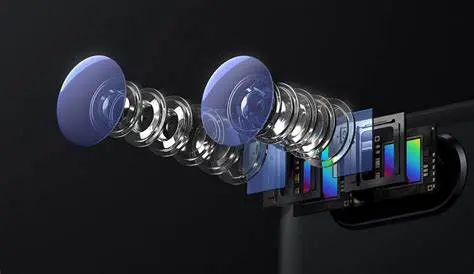

An optical engine, also known as an imaging engine, comprises the light source, imaging chip, and lens system. It processes the input signal and projects the image onto a screen. The choice of optical engine technology directly influences the projector's performance characteristics and manufacturing costs.
Digital Light Processing (DLP)
Technology Overview
DLP technology utilizes a Digital Micromirror Device (DMD) chip composed of thousands of microscopic mirrors. Each mirror corresponds to a pixel and tilts to direct light either toward or away from the projection lens, creating images through rapid modulation.
Image Quality Characteristics
Contrast and Sharpness: DLP projectors are known for high contrast ratios and sharp images, making them suitable for environments with ambient light.
Motion Handling: The rapid response time of DMD chips ensures smooth motion, beneficial for fast-paced content like sports or gaming.
Color Accuracy: Single-chip DLP projectors use a color wheel, which can sometimes lead to the "rainbow effect," a visual artifact noticeable to some viewers.
Cost Implications
DLP projectors often offer a balance between performance and affordability. The technology's maturity and widespread adoption have led to cost-effective manufacturing, resulting in competitive pricing for consumers.
Liquid Crystal Display (LCD)
Technology Overview
LCD projectors employ three separate liquid crystal panels for red, green, and blue light. Light passes through these panels, and the modulated beams are combined and projected through a lens.
Image Quality Characteristics
Color Reproduction: LCD projectors typically deliver vibrant and accurate colors, making them ideal for presentations and educational settings.
Brightness: They often achieve higher brightness levels compared to other technologies, enhancing visibility in well-lit rooms.
Contrast and Motion: While offering decent contrast, LCD projectors may exhibit motion blur during fast-moving scenes.
Cost Implications
LCD projectors are generally affordable, with a range of models catering to budget-conscious consumers. However, they may require more maintenance due to potential issues like dust accumulation and panel degradation over time.
Liquid Crystal on Silicon (LCoS)
Technology Overview
LCoS combines aspects of both DLP and LCD technologies. It uses liquid crystal panels applied to a reflective silicon backplane. Light reflects off the silicon surface, passes through the liquid crystals, and is then projected through a lens.
Image Quality Characteristics
Resolution and Detail: LCoS projectors often support higher resolutions, including native 4K, providing detailed and smooth images.
Contrast and Black Levels: They excel in delivering deep blacks and high contrast ratios, enhancing the viewing experience in dark environments.
Color Accuracy: LCoS offers excellent color fidelity, suitable for applications requiring precise color reproduction.
Cost Implications
The complexity and precision required in manufacturing LCoS panels contribute to higher production costs. Consequently, LCoS projectors are typically priced at a premium, targeting professional and high-end home theater markets.
Comparative Analysis
| Feature | DLP | LCD | LCoS |
|---|---|---|---|
| Brightness | Moderate to High | High | Moderate |
| Contrast Ratio | High | Moderate | Very High |
| Color Accuracy | Good | Very Good | Excellent |
| Motion Handling | Excellent | Good | Good |
| Potential Artifacts | Rainbow Effect | Screen Door Effect | Minimal |
| Maintenance Needs | Low | Moderate | Low |
| Typical Cost Range | Low to Moderate | Low to Moderate | High |
| Ideal Use Cases | Gaming, Presentations | Classrooms, Offices | Home Theaters, Studios |
Factors Influencing Image Quality and Cost
Light Source
The type of light source—lamp, LED, or laser—affects both image quality and cost. Laser projectors, for instance, offer superior brightness and longevity but come at a higher price point.
Resolution
Higher resolution projectors provide sharper images but are more expensive. LCoS projectors often lead in native 4K offerings, while DLP and LCD may use pixel-shifting techniques to achieve similar results.
Lens Quality
The optical quality of the lens influences image clarity and uniformity. High-quality lenses reduce distortions and enhance focus, contributing to overall image excellence.
Cooling Systems
Efficient cooling systems are essential for maintaining performance and extending the lifespan of the projector. Advanced cooling solutions can add to the manufacturing cost but are crucial for high-performance models.
Market Trends
Recent advancements have seen improvements in all three technologies:
DLP: Enhanced color wheels and laser light sources have mitigated the rainbow effect and improved color accuracy.
LCD: Innovations in panel alignment and light path optimization have increased contrast ratios and reduced maintenance needs.
LCoS: Continued refinement in panel manufacturing has led to more compact designs and broader market availability, albeit still at higher price points.
