4000 Lumens DLP Laser Ultra Short Throw Projector For Students
4000 Lumens DLP Laser Ultra Short Throw Projector For Students
Educational DLP Laser Ultra Short Throw 4000 Lumens Projector For School Education CLW400

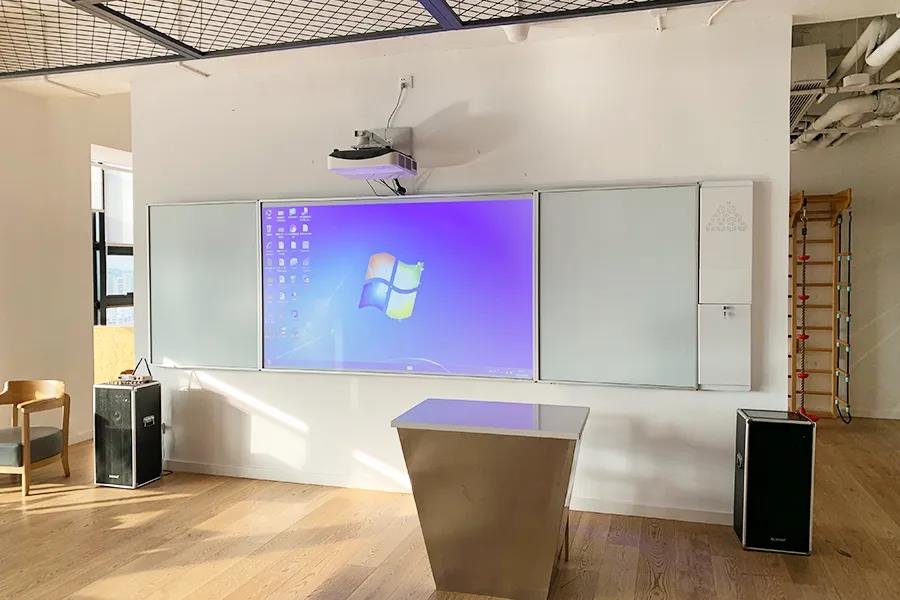

As a mature high-tech, laser projectors are more and more widely used in education.
The biggest benefit brought by the laser projector is to improve the color fullness, brightness and contrast, and the lifespan has reached 20,000 hours, basically achieving no consumables.
Provides 4000 lumens of high brightness, with 1920x1080 ultra-high resolution.
Even in a bright environment, it can still present an excellent chiaroscuro and rich layers, perfectly meeting the teaching needs.
It has six major features: light, thin, ultra-short focus, DLP internal reflection technology, as well as a dust-proof system with a filter up to 9mm and an MHL interface, which effectively avoids dust problems in the later period. Interfering with the normal use of the classroom or increasing school maintenance the emergence of costs, etc.
Taking into account the actual needs of the teaching environment, the Abode ultra-short-throw laser projector adopts an ultra-quiet design, and the working noise of the whole machine is controlled under 30 decibels, providing a quiet classroom environment for teachers and students;
Using a brand-new internal reflection lens, the built-in reflection mirror greatly reduces the thickness of the fuselage, and brings a fully airtight fuselage design;
It only takes 4.14cm to project an 80-inch widescreen image, and the shorter projection distance effectively prevents the projector's light from directly entering the eyes and causing unpredictable damage.
Projection System | DLP |
Native Resolution | 0.65" S600 DC3, 1920x1080 |
Brightness (ANSI Lumens ) | 4000 |
Contrast Ratio (Full on/off) | 12000:1 |
Display Color | 30 Bits (1,037,000,000 colors) |
Aspect Ratio | Native 16:10 |
Throw Ratio | 0.233:1(80"@40.7cm) |
Image Size (Diagonal) | 80" ~150" |
Zoom Ratio | fixed |
Light Source Type | LD module |
Life (Normal/Economic) | 20000Hrs ---TBD |
Keystone Adjustment | 2D, Vertical & Horizontal ± 30 degrees Auto Vertical |
Lens Shift | No |
Projection Offset | 130%+/-5% |
Resolution Support | VGA(640 x 480) to WUXGA(1920 x 1200) |
HDTV Compatibility | 480i, 480p, 576i, 567p, 720p, 1080i, 1080p |
Video Compatibility | NTSC, PAL, SECAM, SDTV (480i/576i), EDTV (480p/576p, HDTV (720p, 1080i/p 60Hz) |
Horizontal Frequency | 15K~102KHz |
Vertical Scan Rate | 23~120Hz |
Focus Range | 80"~150" |
Color Wheel Segment | RYGB |
Color Wheel Speed | 2X |
Color Gamut | TBD (Refer to "Picture Mode") |
ANSI Uniformity (Min.) | -50% |
JBMA Uniformity (Min) | 70% |
Defocus | 2 |
Flare | 3 |
Focus unbalance | No define |
TV Distortion | <0.5% |
Interfaces | |
Computer in (D-sub 15pin) | x1 |
Monitor out (D-sub 15pin) | x1 |
HDMI | x2 |
DVI-D | No |
Composite Video in (RCA) | x 1 |
S-Video in (Mini DIN 4pin) | x 1 |
Component Video in (RCAX3) | No |
Audio in (Mini Jack) | x 1 |
Audio L/R in (RCAx2) | No |
Audio out (OPTICAL) | No |
Audio out (Mini Jack) | x 1 |
Microphone in (Mini Jack) | No |
Speaker | 10W x 1 |
LAN (RJ45) | No |
RS232 (DB-9pin) | x 1 |
USB (Type A) | No |
USB (Type B) | No |
USB (Type Mini B) | No |
3D Vesa | No |
DC 12V Trigger (3.5mm Jack) | No |
Wired Remote (Mini Jack) | No |
IR | x 1 (Front, facing user) |
Imteractive module | No |
Supplementary Info. | |
Dimensions (WxHxD) | 508.7 x 390.0x 144.5 mm |
Weight | 10.6Kgw |
Power Supply | AC 100 to 240 V, 50/60 Hz |
Typical Power Consumption | ~ 380W |
Stand-by Power Consumption | < 0.5W |
Network work standby | N/A |
Acoustic Noise (Typ./Eco.) | TBD (30/ 28 dBA) |
Operating Temperature | 0~35℃ |
ID color | White |
Accessories | |
Carton | Yes |
Carry Bag | No |
Remote Control w/ Battery | x 1 |
Power Cord (by region) | x 1 (1.8M) |
User Manual CD | x 1 (only Chines simplified) |
Quick Start Guide | x 1 (only Chines simplified) |
Warranty Card (by region) | x 1 |
VGA(D-sub 15pin) Cable | No |
Wall mount | No |
Dust filter | No |
Lens cover | No |
HDMI cable (1.8m) | x 1 |
