Cinema Educational Office 3600 Lumens 3lcd Laser Projector For School Classroom 1080p
3600 Lumens 3lcd Laser Projector, Cinema 3lcd Laser Projector, Oem Smart 4k Projector
- Zoom Ratio:1.2X Zoom
- Light Source:Laser
- Lens Vendor:RICOH Lens
- Light Source Life Time:30000H
- Noise(dB):28dB
- Speaker:16W

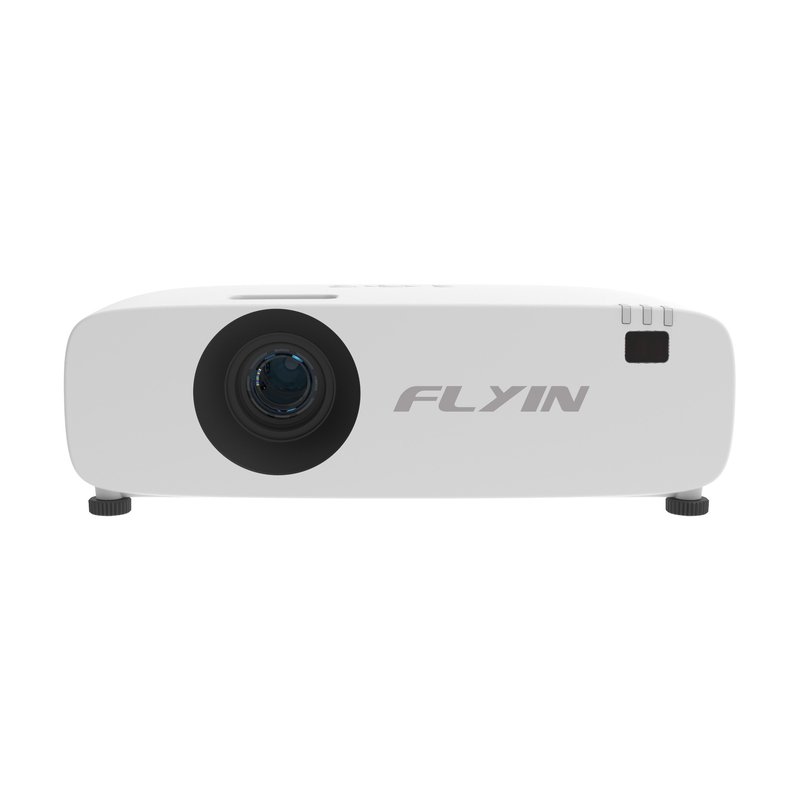

Flyin 3600 Lumens 3lcd Laser Projector For School Classroom Oem 1080p Cinema Educational Office Smart 4k Projector
Top image quality and brightness
Laser Laser light source
Laser-based light engines are incredibly reliable, lasting anywhere from 20k to 30k hours, and are mostly maintenance-free. Laser light engines are incredibly bright compared to lamps and most LED-based light systems

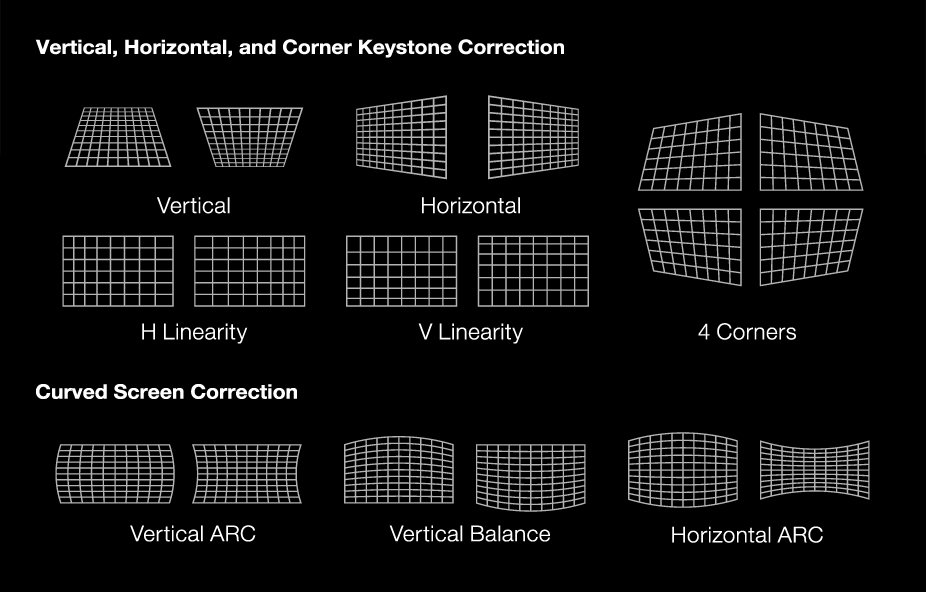

Keystone correction
The four-corner correction and six-point correction functions can individually adjust each corner of the projected image, and then
add horizontal and vertical keystone correction to obtain an ideal symmetrical image.
5,000,000:1 high contrast ratio
High-precision digital laser power output achieves a dynamic contrast ratio of 5,000,000:1 and reduces power consumption. The high contrast increases the color representation and realism of the image, delivering true-to-life image detail even when bright and dark scenes alternate frequently.
360° all-round free installation
YOGA series projectors can be installed at any vertical/horizontal angle, and the projector unit can be freely rotated 360°
Ultra-short-throw LCD laser projector achieves 5,000 lumens of high-definition images

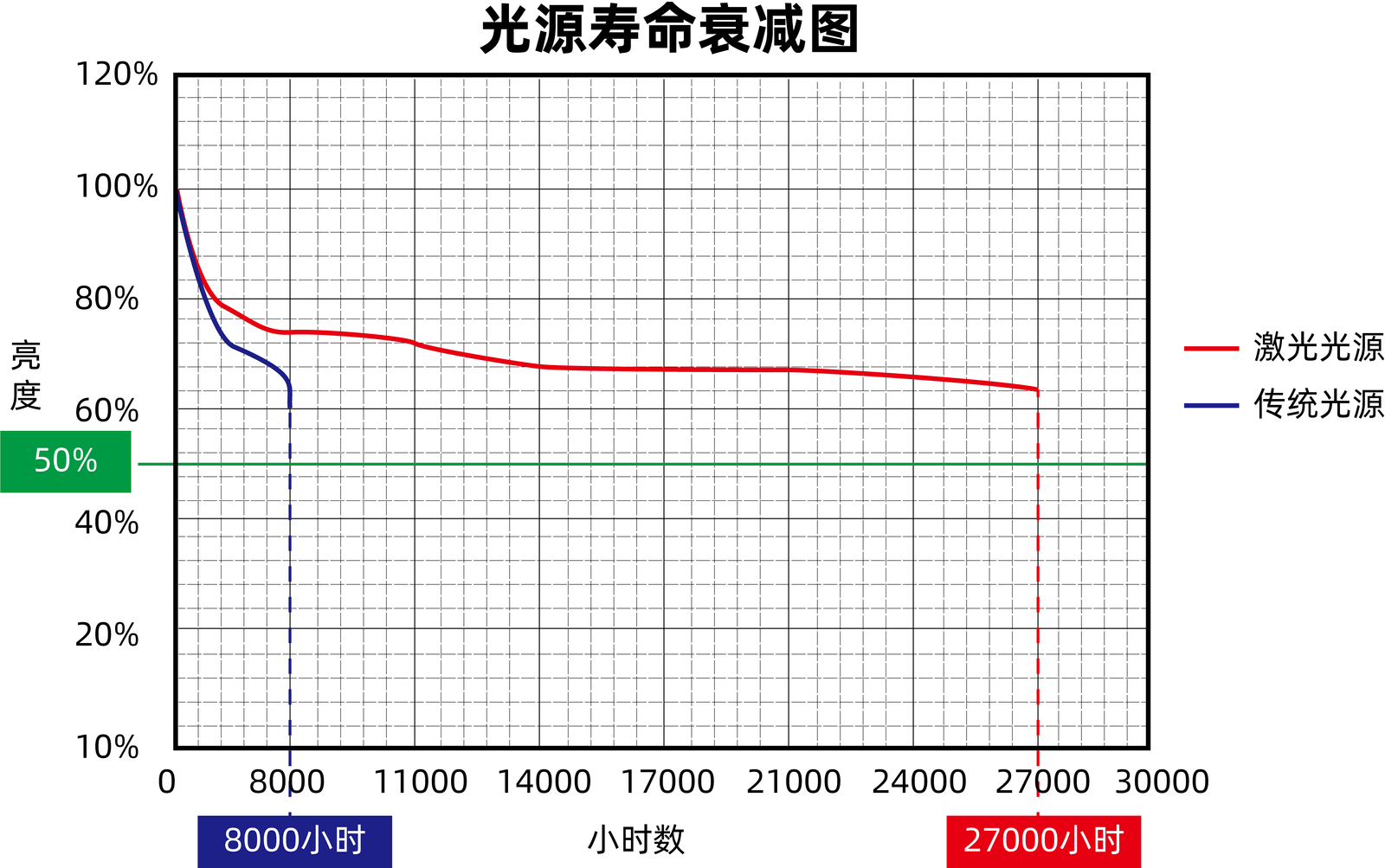

YOGA LCD laser ultra-short-throw projector uses a laser solid-state light source to achieve an ultra-long service life of up to 30,000 hours. The attenuation curve of the laser light source is relatively gentle, so that the output image quality can maintain high brightness, saturation and contrast for a long time, and the color of the image is always clear and bright. The Venus LCD laser ultra-short-throw projector also uses a multi-laser module light source, which is not afraid of the failure of a single laser diode and is more stable. With a variety of laser modes, it can adapt to the ambient light of various scenes, and the brightness can be adjusted from 50% to 100%
Specification
| Key parts | ||
| Panel | 3x0.63” without MLA | |
| Zoom Ratio | 1.2X Zoom | |
| Light source | Laser | |
| Brightness | ||
| ISO21118 | Brightness --MKT | 3600 |
| Brightness --TYP | 3240 | |
| Brightness --MIN | 2880 | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.63” without MLA |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | XGA (1024 x 768) | |
| Light source Life time | FullNormal/Normal mode | 20000hrs |
| ECO1 mode | 30000hrs | |
| ECO2 mode | 30000hrs | |
| Projection Lens | Lens Vendor | RICOH Lens |
| Zoom/Focus | Manual | |
| Throw Ratio | 1.48~1.78:1 | |
| Zoom Ratio | 1.2x optics | |
| Screen size | 30-300 inch | |
| CR | Dynamic Contrast Ratio (FOFO) | 5000,000:1 |
| Noise | Noise(dB) | 37dB(Normal) 30dB(ECO1) 28dB(ECO2) |
| Uniformity | Uniformity(Actual Min) -ISO21118 | 80% |
| AR | Aspect Ratio | Native:4:3 Compatible: 16:9/16:10 |

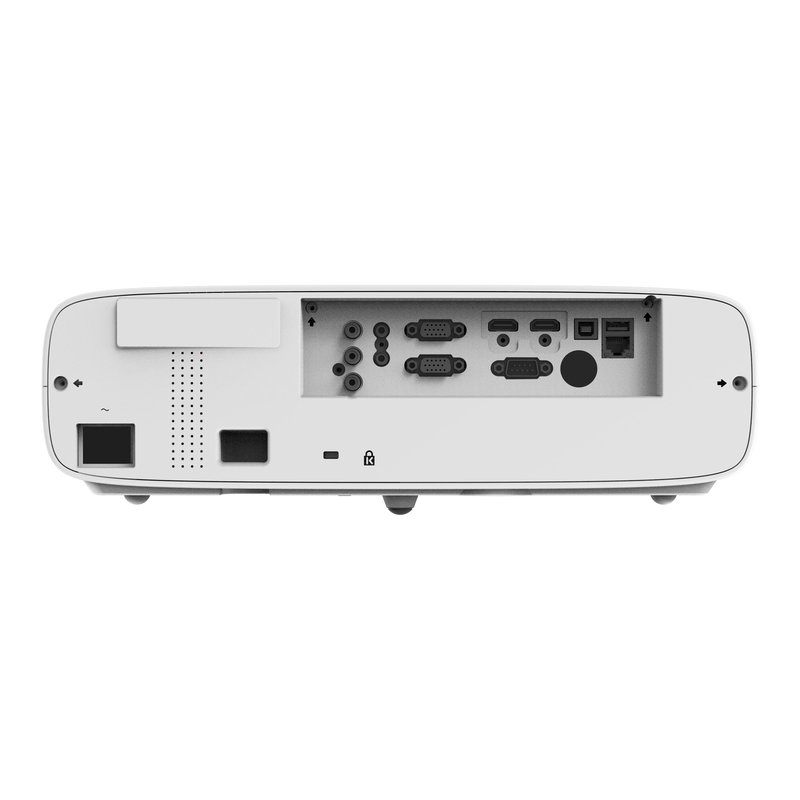

| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI | *2 | |
| Video | *1 | |
| Audio in (mini jack,3.5mm) | *1 | |
| Audio in (RCA×2) | *1 | |
| USB-A | *1 | |
| USB-B | *1(Display) | |
| RJ45 | *1(Display) | |
| Output | VGA | *1 |
| Audio out | *1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Dust filter | W/Filter | |
| Filter Life time | 7000h | |
| Power Consumption | Power Requeirements | 100~240V@ 50/60Hz |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) | V: ±30° H:±30° |
| OSD | Languages | 26 |
| Others | 360° projection | Yes |
| Wireless display | SmartPhone: Android:Install APK for Android | |
| Dimension&Weight | ||
| MAX Dimensions (WxDxH mm) | 390*294*128 | |
| Net. Weight (KG) | 5Kg | |
| Packaging Box Dimensions (WxDxH mm) | 492*443*239 | |
| Gross. Weight (KG) | ~6.5Kg | |
