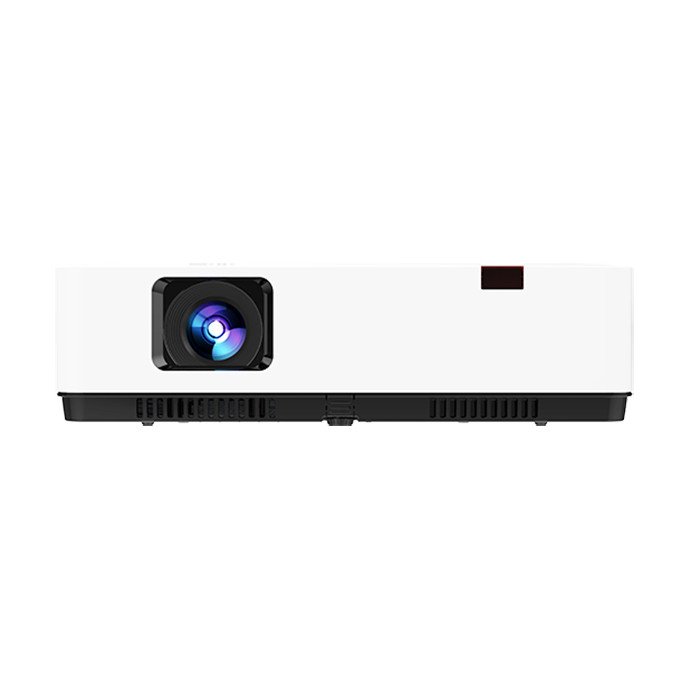

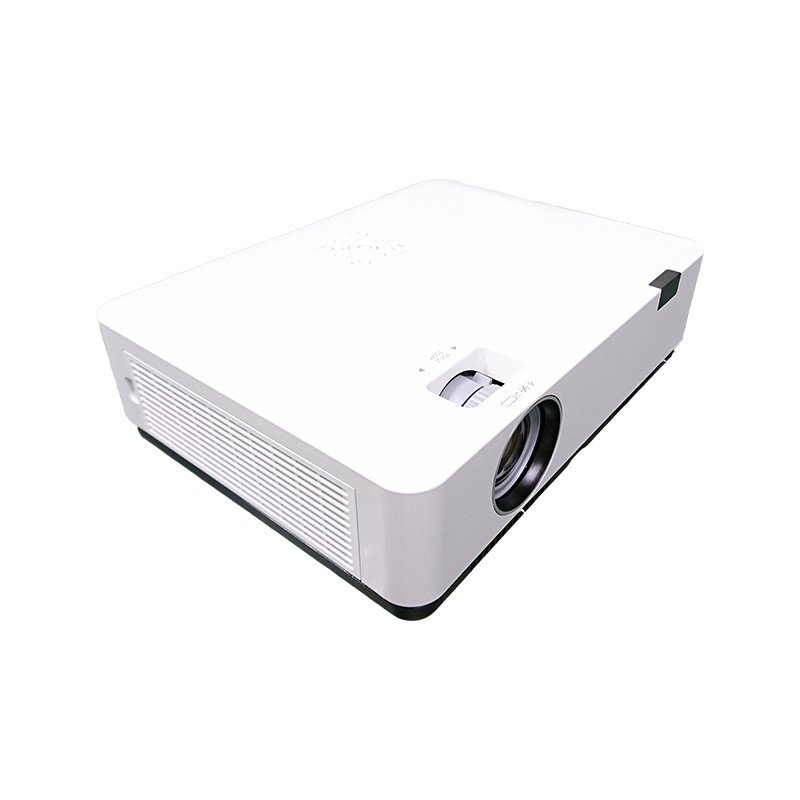

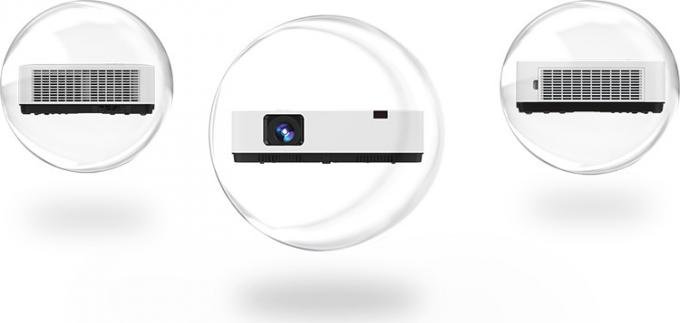

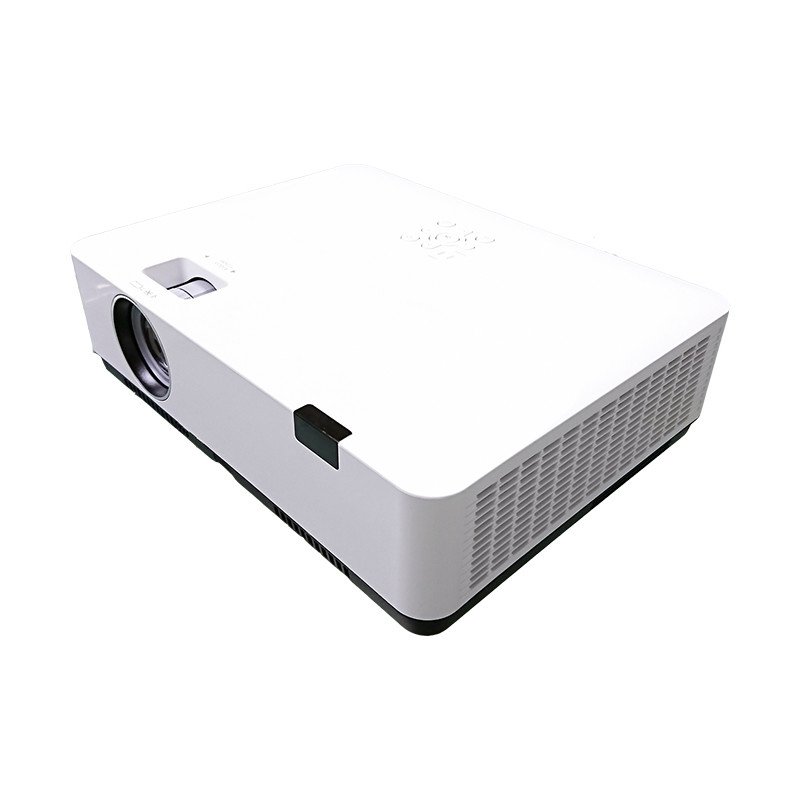

Full HD LCD 3500 Lumens Educational Projector White Long Bulb Life
Education Full HD 3500 lumens 3lcd bulb projector white long bulb life 3 years after-sales service guarantee
High brightness 3500 ASNI lumens
Resolution XGA (1024x768) Support 4k decoding
Contrast ratio 8000:1
Lamp life 20000hours
very interactive
removable dust filter Dual channel cooling system
LCD chip display 3x0.64" LCD screen
70"@2.1m; 1.48~1.78:1 throw ratio
| Key components | Panel | LCX080A-(B5 ML/WO) W/O Macro Lens |
| PJ Lens | F2.1*1.2 | |
| Light source | Philips:225W Infinity(Lamp) | |
| Main IC | Pixworks: PW868 | |
| Sony IC | CXD3551+CXA3828 | |
| Brightness | Brightness | 3500 Ansi Lumens |
| Power consumption(MAX) | 300 W | |
| Light source | Lamp:225W | |
| Overall Spec | ||
| Display Panel | 3x0.63” | |
| Panel | Display Technology | LCD |
| Native Resolution | XGA (1024x768) | |
| Lamp | Light consumption (W) | Philips:225W Infinity(Lamp) |
| Lamp Life time(H) | 10000H(Normal) /20000H(ECO) | |
| Zoom/Focus | Manual | |
| Throw Ratio | 70" at 2.1m,1.48~1.78:1 | |
| F | F:2.1~2.25 | |
| Projection Lens | f | f=19.109~22.936mm |
| Zoom Ratio | 1.2x optics | |
| Screen size | 0.887~10.899m(30"~300") | |
| CR | Contrast Ratio(Min) | 8000:1 (w/o IRIS) |
| Noise | Noise(dB) at 1m | ECO: 31dB Normal: 38dB |
| Uniformity | Uniformity(Actual Min) -JISX6911 | >90% |
| AR | Aspect Ratio | 4:3 (Standard)/16:9(Compatible) |

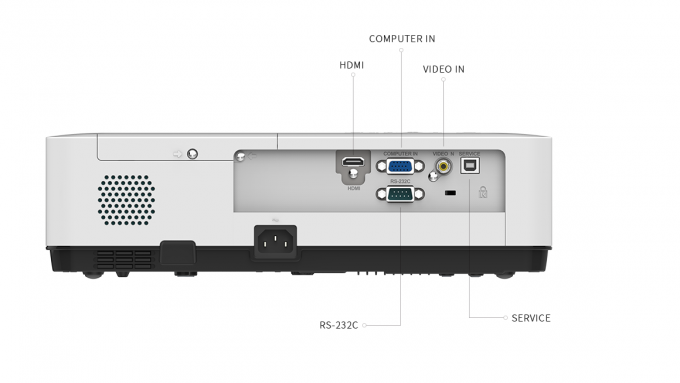

| Terminal(I/O port) | ||
| VGA | *1 | |
| HDMI | *1 | |
| Video | *1 | |
| RS232 | *1 | |
| Control | USB-B | *1(for up-grade) |
| General Spec | ||
| Power Requeirements | 100~240V@ 50/60Hz | |
| Power consumption (W) | 290 | |
| Power Consumption | Power Consumption (ECO) | 203 |
| ECO Standby Mode Power Consumption | <0.5W | |
| Operating Temp. | 0℃~40℃(35~ ECO) | |
| Temp.&Humidity | Store Temp. | -10℃~~55℃ |
| Oparating Humidity | 20%~85% | |
| Storage Humidity | 10%~85% | |
| Security bar | Yes | |
| Password protections | Yes | |
| Control Panel Lock | Yes | |
| Mechanical Design | Kenginston Lock | Yes |

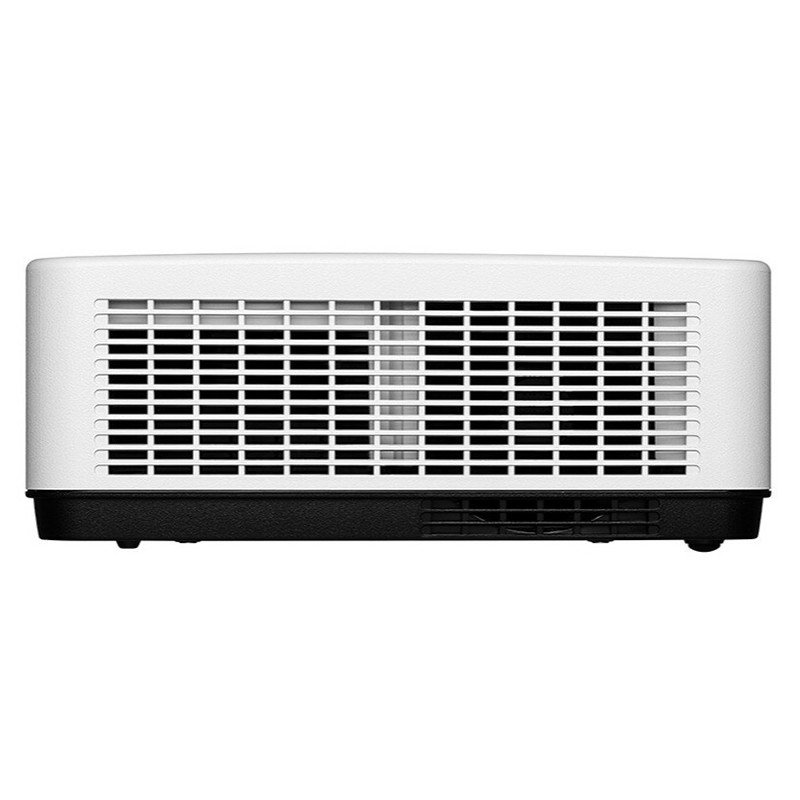

| Ventilation (In/Ex) | Side/Side | |
| Lamp access | Top | |
| Filter access | Side | |
| Dust filter | Sponge | |
| Keystone | Keystone Correction | V: ±30° (Manual) |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korea, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 48~85Hz | |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,Mac, |
| Video Signal Input | NTSC, NTSC4.43, PAL, SECAM, PAL-M, PAL-N, | |
| Auto Setup | INPUT SEARCH,AUTO PC, | |
| Audio muting(Muting) | N/A | |
| Suspend | Yes(5miniutes no singnal as default) | |
| Picture mode | Dynamic,Standard,Cinema, Blackboard,Colorboard | |
| Lamp mode | NORMAL,ECO | |
| SW setting | Filter Cleaning Cycle | 100/200/300 hours |
| Cooling time | 0S,60s,90s | |
| Closed caption | Yes | |
| High altitude | Yes(1400~2700m) | |
| Signal Power On | Yes | |
| Turn on countdown | Customized-(5S, 10S, 30S..) | |
| D-Zoom | 1~33 steps | |
| Dimension&Weig | Others | |
| MAX Dimensions (WxHxD mm) | 345*261*99 | |
| Net. Weight (KG) | ~3.06 | |
| Packaging Box Dimensions (WxHxD mm) | 442(L) X 386(W) X 195mm(H) | |
| Gross. Weight (KG) | 4.5 | |
| Accessory | ||
| Regulation List | Standard Accessaries | Power cord, VGA cable, Remote control |
| China | Safety and EMC | CCC |
| 节能环保 | CECP | |
| USA/Canada | Safety | cTUVus CB |
| EMI | FCC | |
| E.U EMC Class | EMC | CE |
| EMC class | Class B@3dB | |
