Large Venue 15000 Lumens 4K DLP Laser Projector For Outdoor Cinema

Product Specification

Model Number

PU950

Projection Specification

Display Technology

DLP chip × 1,0.67"DMD

Light Source

New SLPL Laser module

Brightness

Resolution

1920*1200

Dynamic Contrast

15000:1

Color Space

>90% REC709

Uniformity

0.9

Projection Lens

F:1.5-2.4,1.6X optical zoom,f=22-35mm

Optional Lens

LA030C:0.3:1LA054C:0.54:1LA065C:0.65:1LA080C:0.8:1LA120C:0.7-1.2:1LA160C:1.07-1.7:1LA300C:1.5-3.0:1

Lens Shift

Vertical electrical 50%,Transverse electrical 10%,electrical

Keystone Correction

Vertical keystone correction ±30°

Screen Size

40inch～400inch

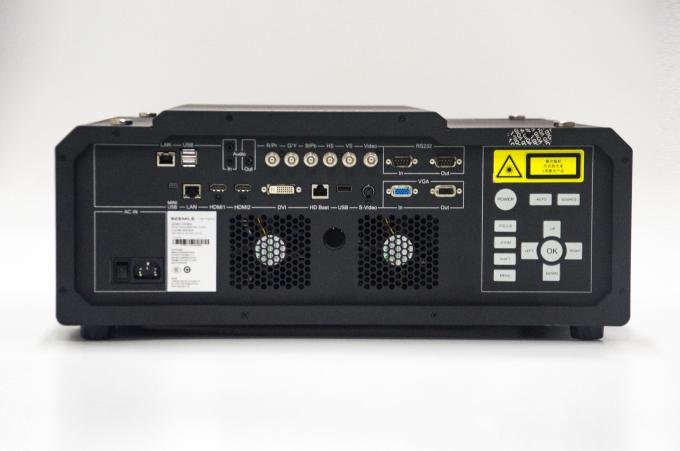

Input Interface

VGAComputer Input 1 (15 Pin)× 1,BNC*5 (RGBHV)× 1,Video BNC× 1,S-Video (Mini DIN 4 pin)× 1,DVI-I× 1,HDMI (v1.3 with audio)×
2,HD-baseT(RJ45)× 1, Network transmission RJ45(Optional, intelligent system)× 1,USB (Type A) (Optional, intelligent system)× 2

Output Interface

VGA Display output (15 Pin)×1

Control Port

RS232 serial interface(9 Pin,male) input× 1,RS232 serial interface(9 Pin,male) output× 1,USB (Type mini B)× 1,Network interface
(RJ45)× 1,USB Type A(Power supply)× 1

Computer Compatibility

VGA SVGA XGA SXGA WXGA UXGA Mac

Video Compatibility

PAL,SECAM,NTSC 4.43,PAL-M,N,HDTV(480i,480p,575i,575p,720p,1035i,1080i and 1080P)

Horizontal Scanning Frequency

15-100 KHz

Vertical Sanning Frequency

48-85 Hz

Power Consumption

780W/Standby<0.5W

Power Supply

100-240V AC

Power Supply

100-240V AC

Loudspeaker

1*10W

Light Source Life

Bright mode:20000 hours；ECO mode:25000 hours

Dimension (LxWxH)

524*519*197mm

Weight

<30KG

Noise Level

<37dB @33℃

Projection Ways

Front projection/Rear projection,Desk/Lifting

Appearance Color

Black

Working Temperature

5-35℃

Storage Temperature

-10-60℃

Menu language

3 languages(Chinese,English,Traditional Chinese)

Standard Accessories

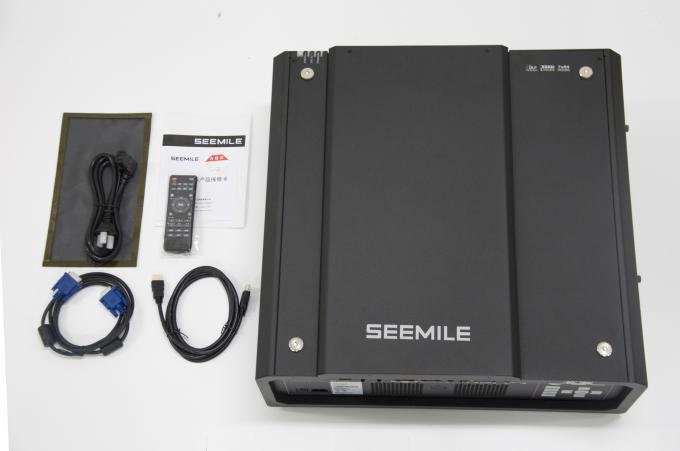

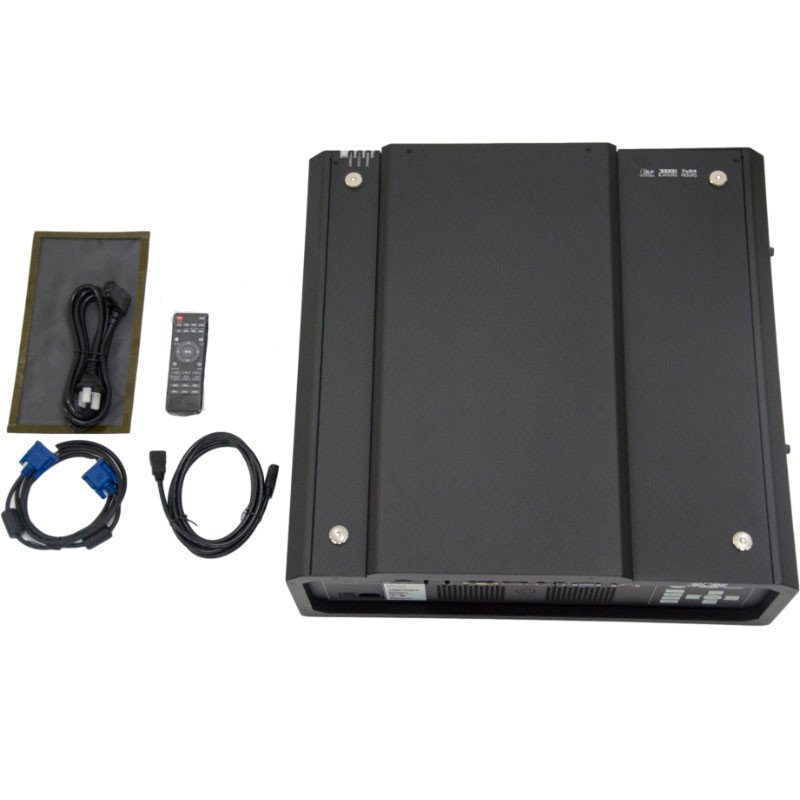

Power Cord, Remote Control, VGA Cable, HDMI, Warranty card, Qualified card

Qualification File

3CCECPMachine performance test report(Commissioned test)
